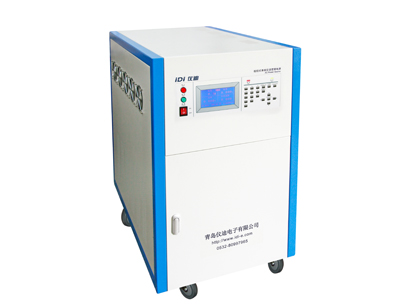

93XXX Series Three Phase AC Power Source
1. Capacity: 500VA - 200KVA
2. Utilize IGBT / PWM technology withswitching amplifier design.
3. Adjustable AC output line voltage 0 -519.6V/ frequency 45 - 65Hz；
4. Output voltage stability factor canreach 0.5%；
5. Programmable 6 memories and 5 steps permemory, for interconnection between each step to simulate different test of theDUT;
6. Auto loop cycle, up to 50000cycles;
7. Electric energy test;
8. Enhanced crest factor. The rate is up to3 : 1 at rating current output.
9. Fast recovering time, 2 milliseconds.
10. Unique regulation function in providingcapability to turn on high inrush current loads such as motors and compressors
11. Memory with password setting.
12. Over power, short circuit and overtemperature protection and alarm;
13. LCD display, beautiful appearance.
